The Original Style Solution for Your Range Rover's Suspension
A functioning air suspension system is vital for the iconic ride quality and all-terrain capability of your Range Rover L322. If your vehicle is slow to lift, stuck on the bump stops, or displaying a "Suspension Inactive" warning, a failed compressor is the most likely culprit.

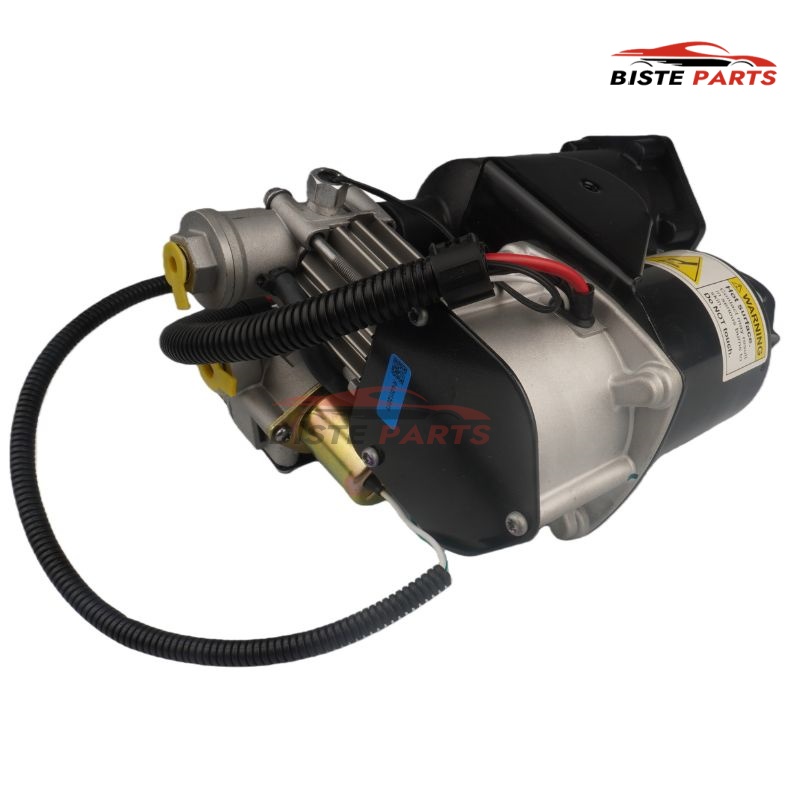

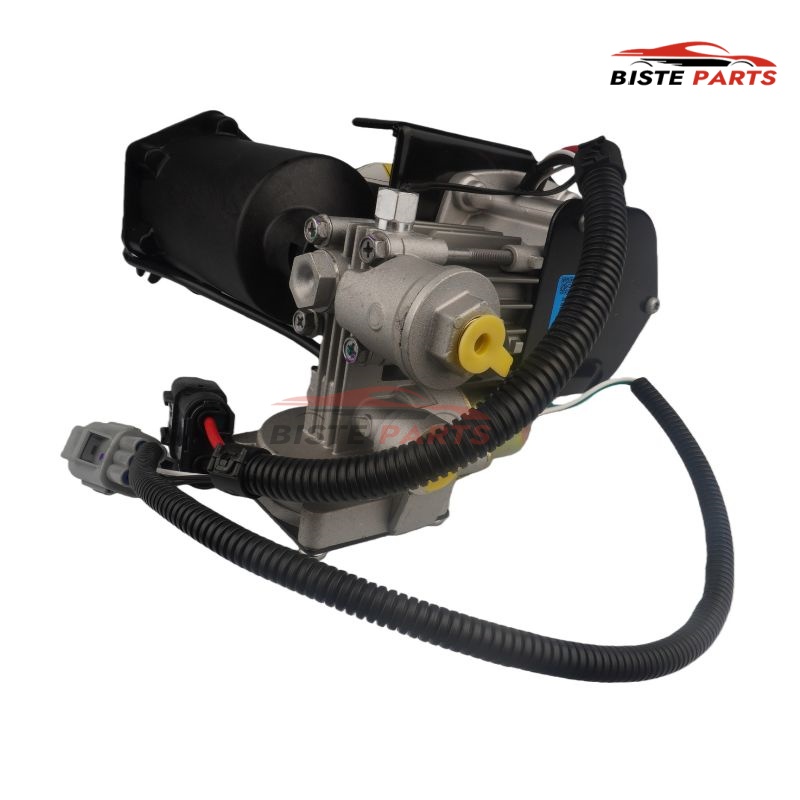

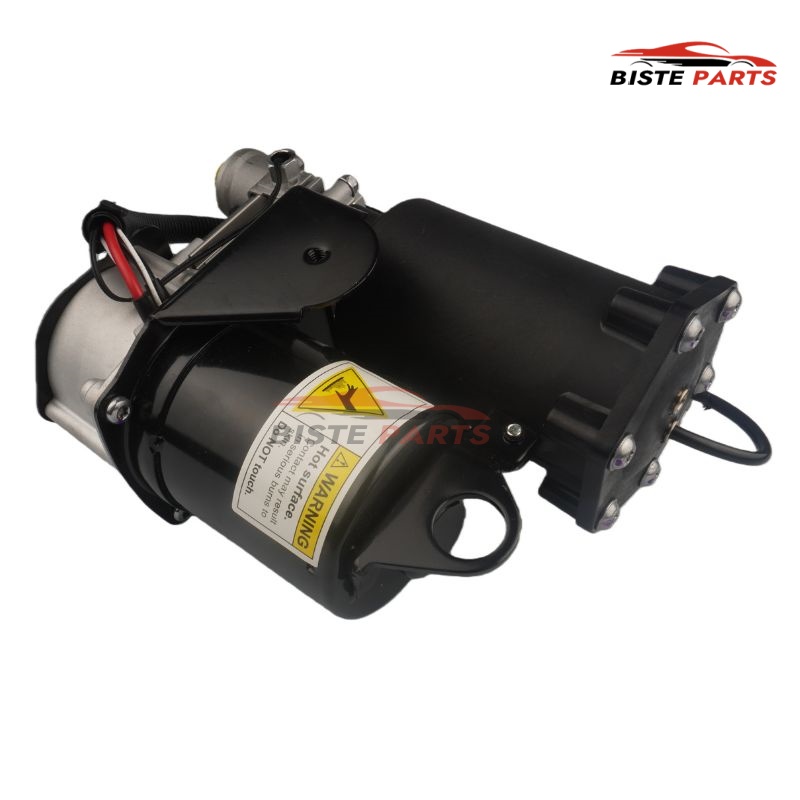

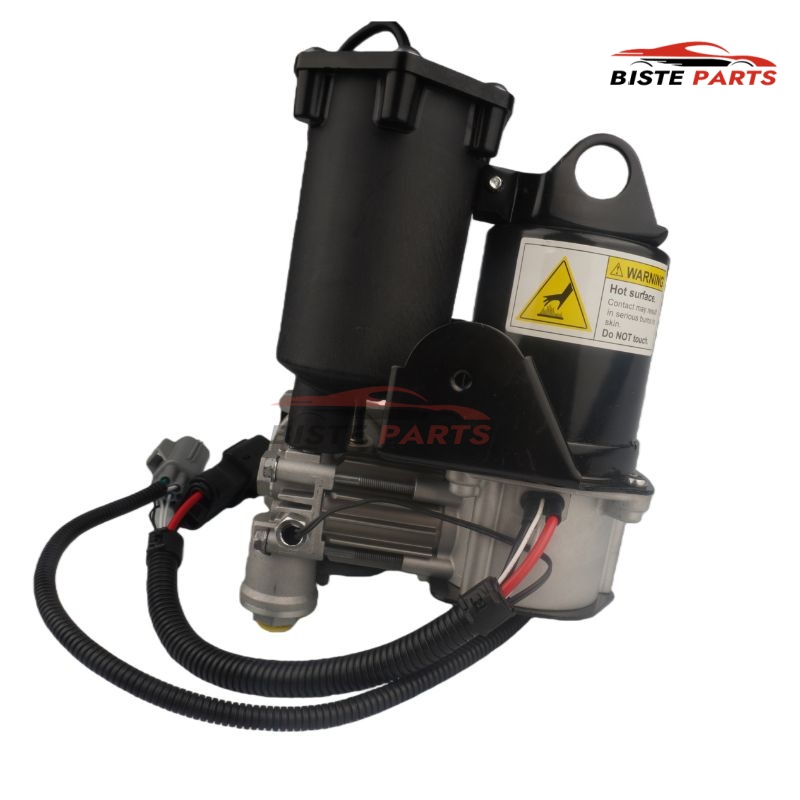

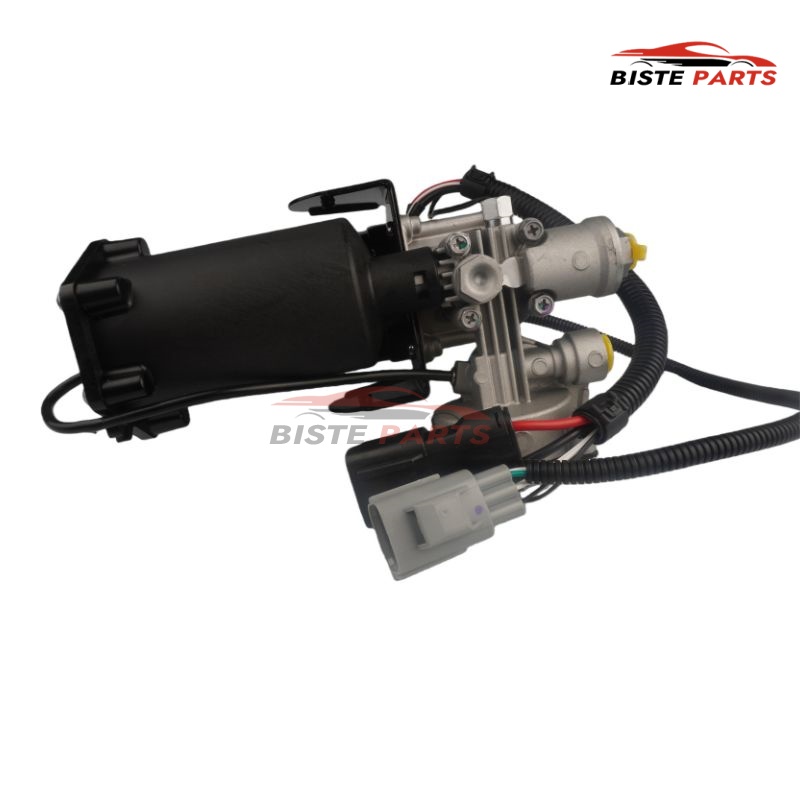

This is the Hitachi-style Air Suspension Compressor Assembly, designed as a direct, bolt-in replacement for the original factory-fitted unit on earlier L322 models. It arrives as a complete assembly, ready to restore your vehicle's ride height control and driving comfort.
ATTENTION: CRITICAL FITMENT INFORMATION - READ BEFORE BUYING
Land Rover used TWO DIFFERENT compressor suppliers for the L322 Range Rover. You MUST confirm which type is on your vehicle.
HITACHI Style (This Product): Found on most 2002 - Early 2006 models. It has a distinct, boxy, black plastic cover.

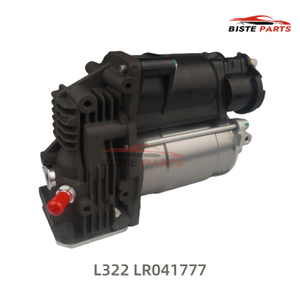

AMK Style: Found on most Late 2006 - 2012 models. This was the factory upgrade. It has a more open design with visible metal motor fins.
This compressor (LR025111) is the HITACHI style. It will NOT fit a vehicle originally equipped with an AMK compressor. Visual verification is the best way to ensure you order the correct part.
MANDATORY INSTALLATION PROTOCOL - YOUR WARRANTY DEPENDS ON IT:Protect your new compressor from immediate failure by following these essential steps:
CHECK FOR LEAKS: The #1 cause of compressor failure is a leak in the air springs or lines, which forces the unit to overwork. The system MUST be tested for leaks before installing this part. Compressor burnout due to system leaks is NOT covered by warranty.
REPLACE THE RELAY: The compressor relay is a known failure point. A sticking old relay can destroy a new compressor in minutes. You MUST install a new relay with your new compressor.
Key Features & Benefits:
Direct Hitachi Replacement: Specifically designed to replace the original Hitachi unit on 2002-2006 L322s.
Complete Assembly: Includes the compressor and bracket for a straightforward installation.
Restores Full Function: Cures "Suspension Inactive" warnings and brings back ride height adjustment.
Cost-Effective Repair: An affordable alternative to a costly dealership visit.
Product Specifications
| Attribute | Detail |
|---|
| Product Name | Hitachi Style Air Suspension Compressor Assembly |
| Vehicle Fitment | Land Rover Range Rover (L322) |
| Model Years | 2002 - Early 2006 (Verify your type) |
| Condition | 100% Brand New |
| Package Contents | 1x Complete Air Suspension Compressor Assembly |
Vehicle Compatibility
This is a direct replacement for Hitachi-equipped vehicles:
This part is NOT a direct fit for late 2006-2012 models, which use the AMK compressor.
Replaces OEM Part Numbers
This assembly replaces all previous versions of the Hitachi compressor, including:
LR025111
LR010375
LR015089
LR011837
RQG500140
RQG500110
RQG500090
RQG500072
RQG500071
RQG500070
RQG500062
Visual verification is strongly recommended. If you are unsure which compressor your vehicle has, please contact us with your VIN before purchasing.
