The Ultimate Solution for Modern Range Rover Suspension Issues
The Land Rover Range Rover (L405) and Range Rover Sport (L494) represent the pinnacle of modern luxury and capability. Their sophisticated air suspension with Adaptive Dynamics (VDS/CVD) provides an exceptional ride, but as these vehicles age, this system can become a major source of frustration and expense. Failures in the electronic dampers often lead to a harsh ride, persistent "SUSPENSION FAULT" warnings, and a sagging front corner that compromises both aesthetics and safety.

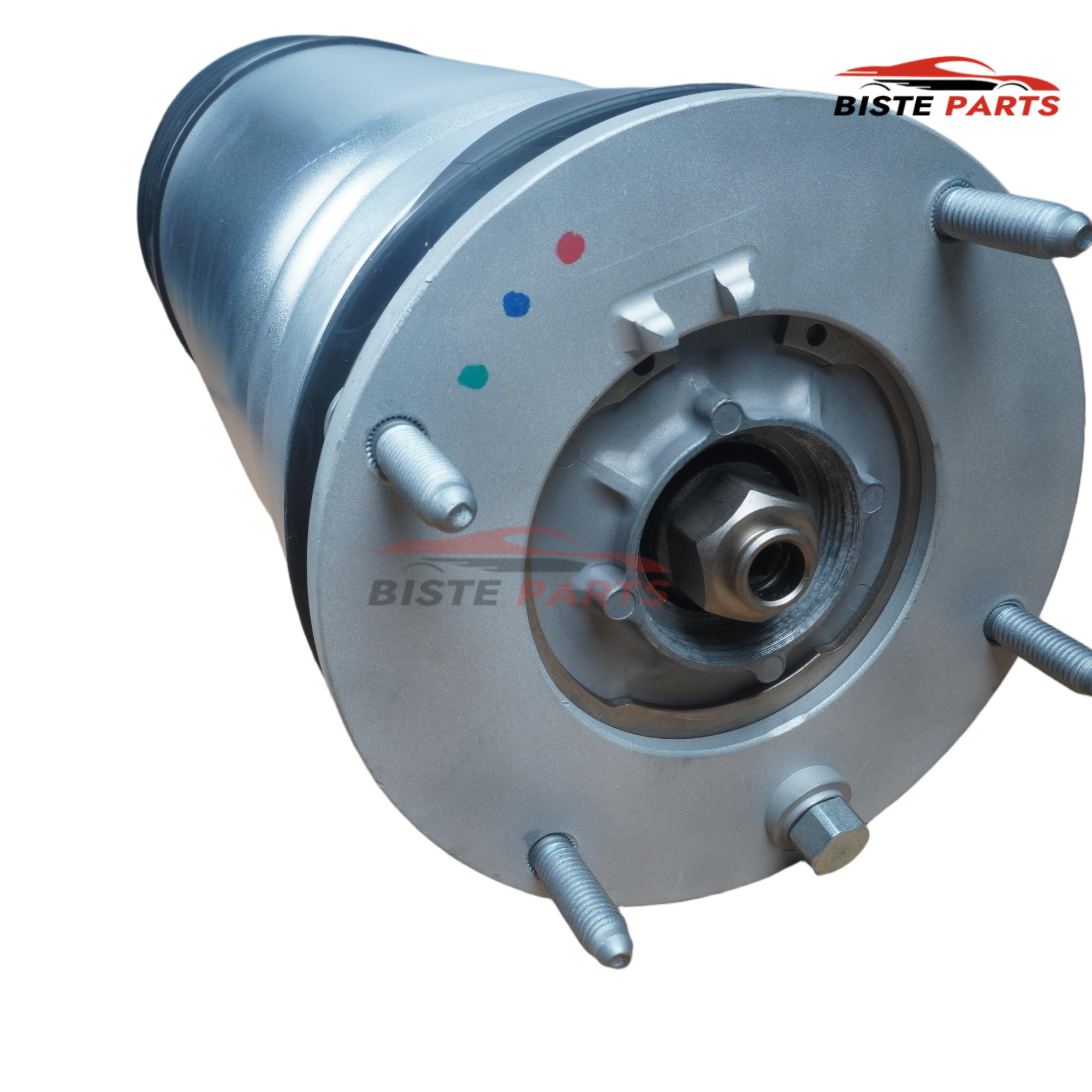

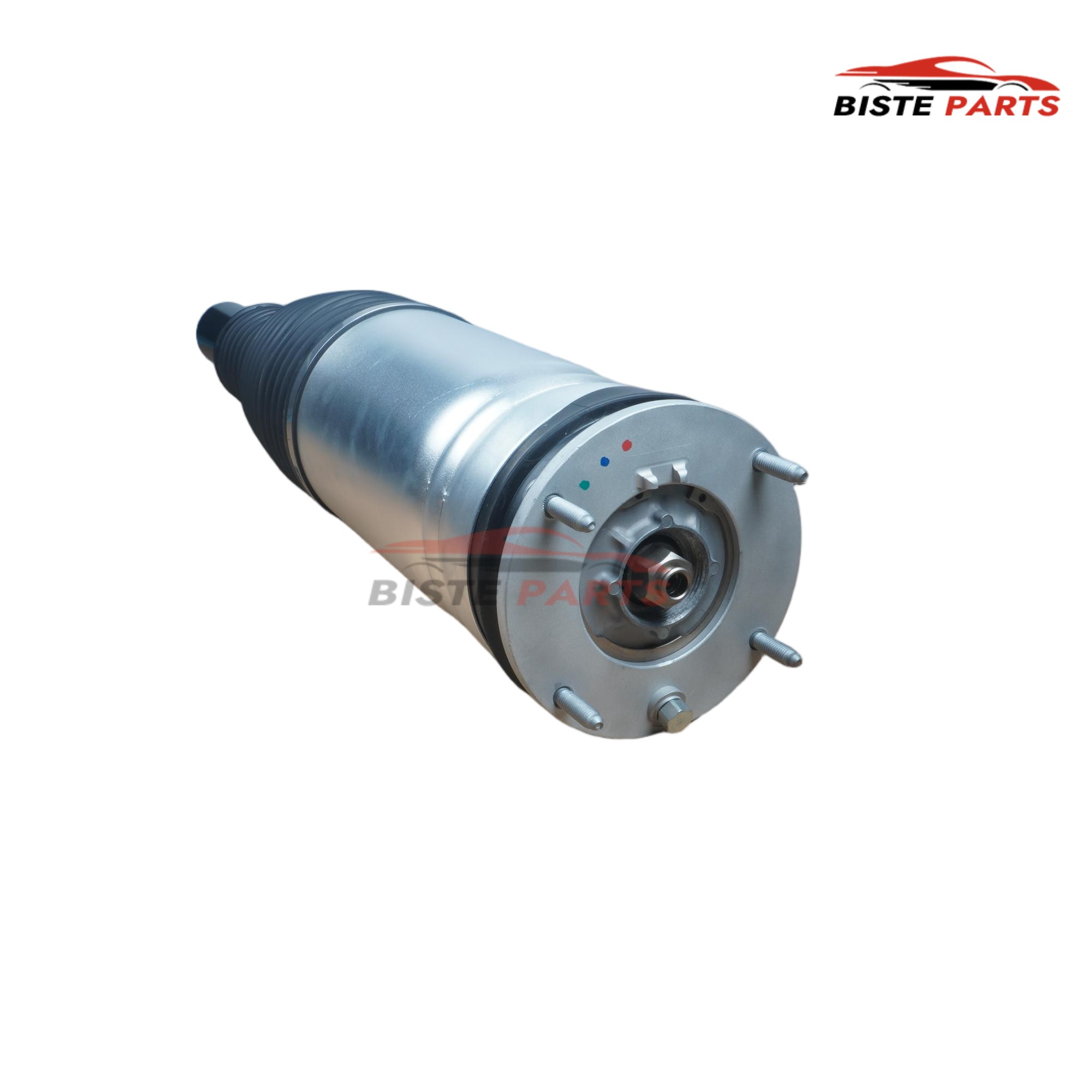

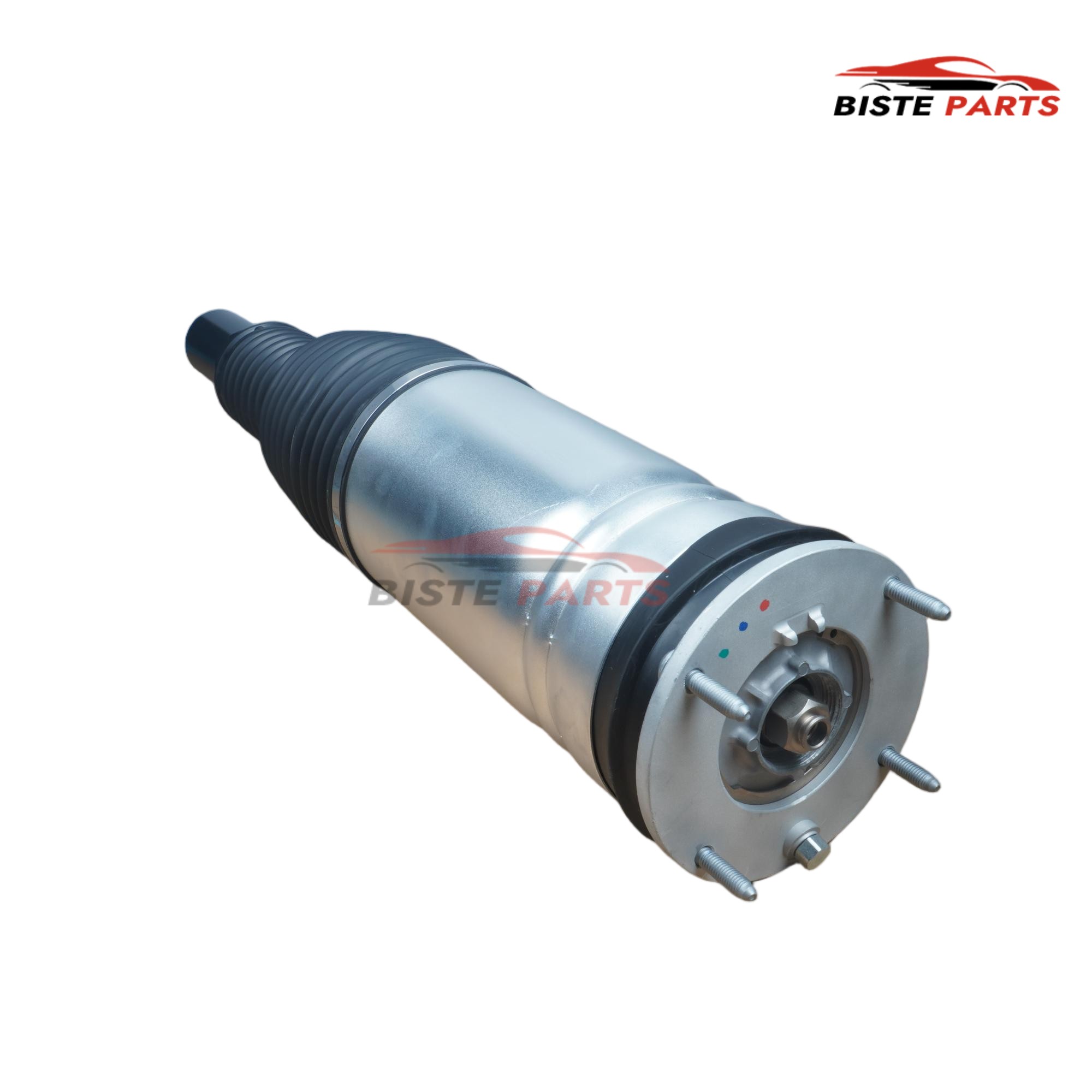

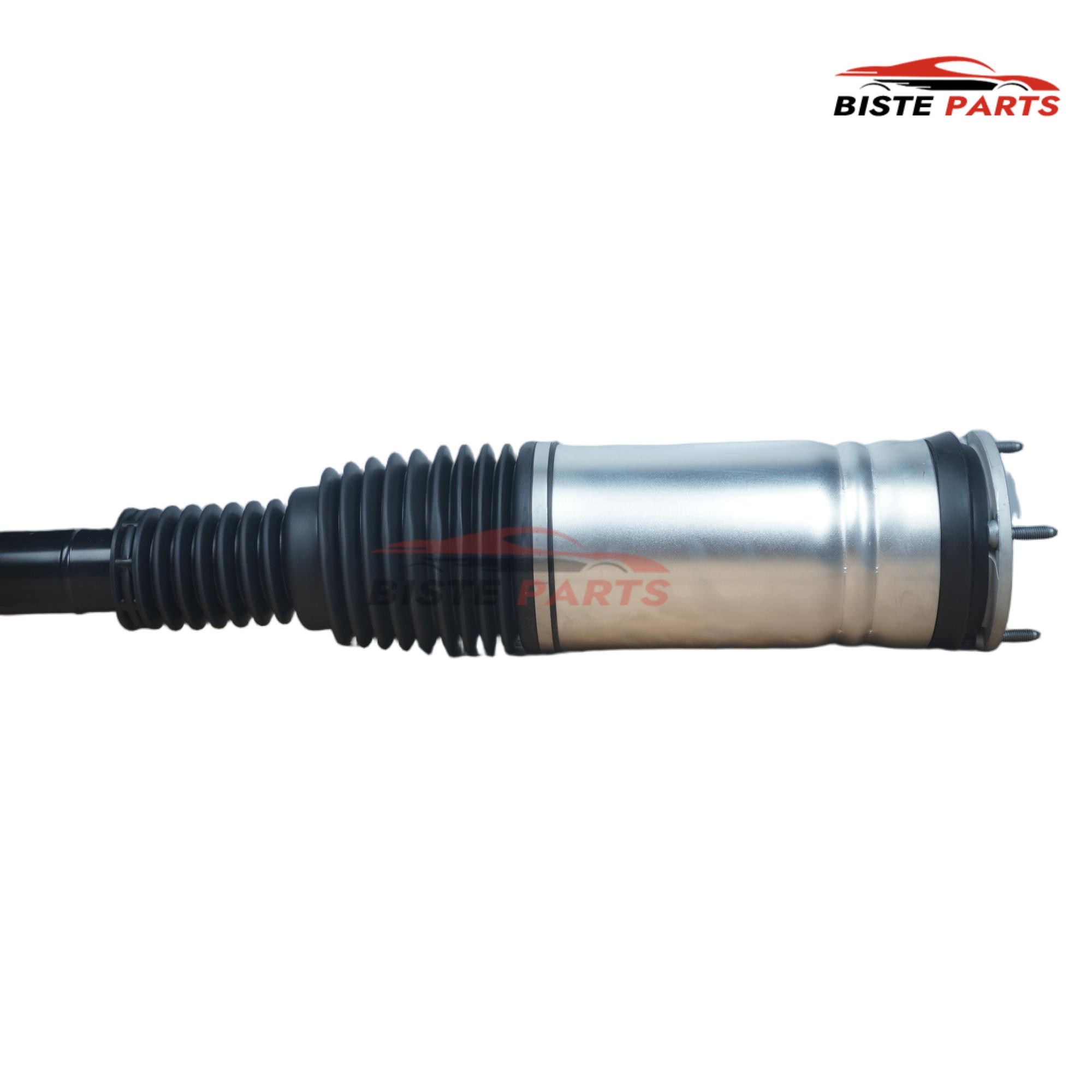

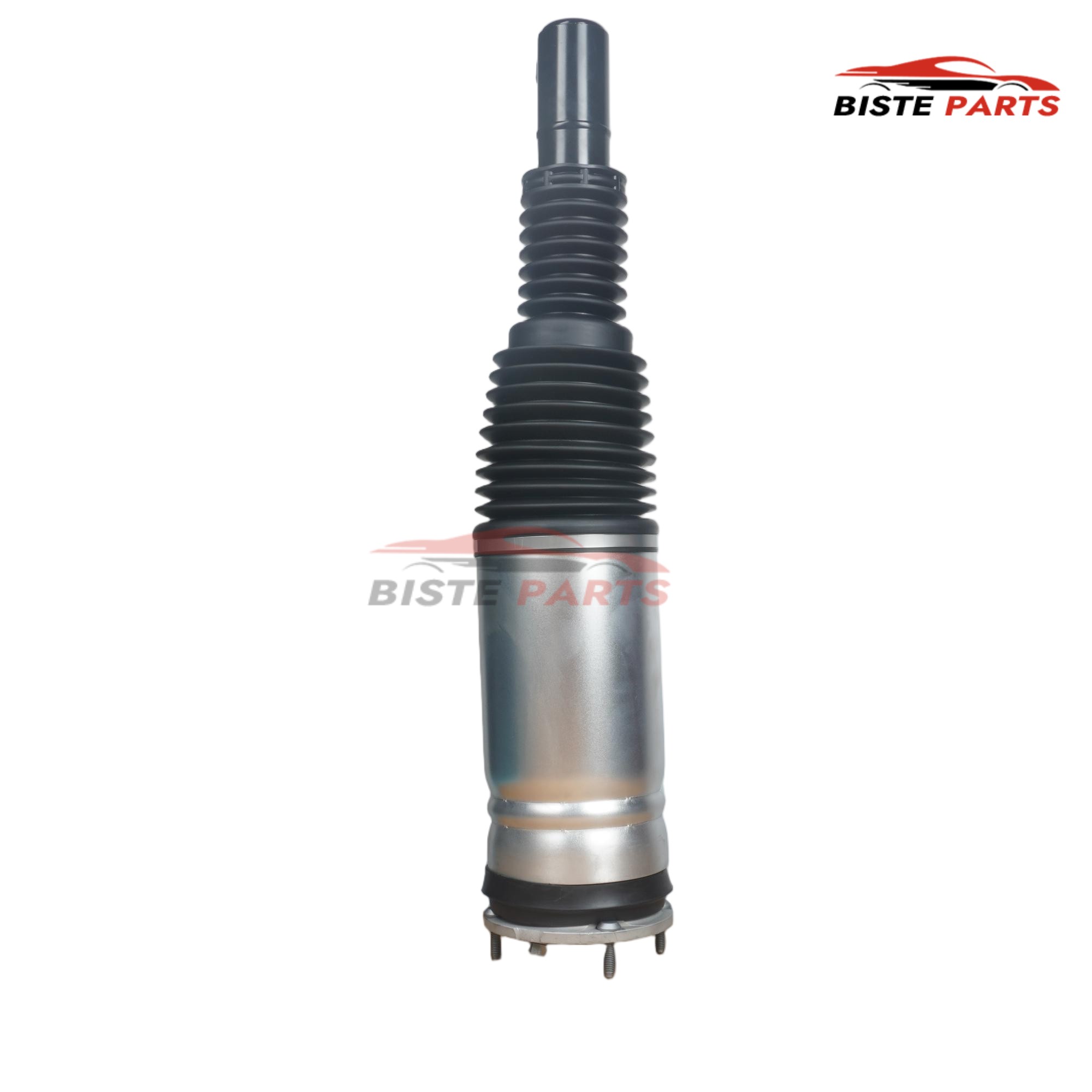

This Biste Front Left Air Strut offers a permanent and intelligent solution. It is a passive conversion strut, expertly engineered to replace the complex electronic strut. It features a high-performance, conventionally-valved shock absorber paired with a durable air spring. This design completely bypasses the failure-prone electronic components of the VDS system, eliminating the root cause of the problem while providing a smooth, comfortable, and controlled ride.
For owners seeking a long-term, worry-free repair that avoids the high cost of OE electronic parts, this passive strut is the ideal choice.
Key Features & Benefits:
Reliable Passive Conversion: Permanently eliminates common VDS/CVD electronic faults by replacing the system with a robust, non-electronic design.
Significant Cost Savings: A far more affordable alternative to a new OE electronic strut, delivering exceptional value without compromising on quality or safety.
Broad Compatibility: Engineered to fit both the Range Rover (L405, 2013-2021) and Range Rover Sport (L494, 2014-2022).
Position-Specific Design: Built for the Front Left (FL) / Driver's Side.
Direct-Fit Installation: Designed as a direct bolt-on replacement for the factory strut, requiring no modifications.
TS16949 Certified Quality: Manufactured in a state-of-the-art facility adhering to the strict TS16949 automotive quality standard for reliability and performance.
Product Specifications
| Attribute | Detail |
|---|
| Product Name | Front Left Air Suspension Strut (Non-VDS) |
| Position | Front Left (FL) / Driver's Side |
| Vehicle | Land Rover Range Rover (L405) & Range Rover Sport (L494) |
| Model Years | See compatibility list below |
| Condition | 100% Brand New |
| Package Dimensions (Approx.) | 88 x 22 x 22 cm (34.6 x 8.7 x 8.7 inches) |
| Package Weight (Approx.) | 15 kg (33 lbs) |
| Replaces OE Numbers | LR057700, LR135564 |
Vehicle Compatibility
This part is compatible with the Front Left side of the following vehicles:
Land Rover Range Rover (L405) (2013-2021)
Land Rover Range Rover Sport (L494) (2014-2022)
For models originally equipped with VDS/CVD (Electronic Suspension)
CRITICAL FITMENT INFORMATION - PLEASE READ CAREFULLY:
This is a PASSIVE strut designed to replace the original ELECTRONIC (VDS/CVD) strut. It does NOT have an electrical connection for damping control.
MUST BE REPLACED IN PAIRS: For a balanced, safe, and stable ride, these passive conversion struts must be installed in pairs (Front Right & Front Left). Installing only one will result in an uneven ride, unsafe handling, and may trigger system faults.
This part is for the Front Left (Driver's Side) ONLY.
Please verify one of the part numbers from the list below matches the part you are replacing to guarantee fitment.
Replaces Part Numbers
This part is a direct replacement for the following original equipment (OE) part numbers:
Replaces Land Rover Original Equipment (OE) Part Numbers:
(Note: These numbers are specific to the Front Left position on vehicles with VDS. Always verify your part number before ordering.)
