The Smart Solution for Your L322's Suspension
The Land Rover Range Rover L322 (2006-2012) is celebrated for its legendary combination of off-road prowess and on-road luxury. A key component of this capability is its sophisticated air suspension, often featuring the electronic Variable Damping System (VDS), also known as Continuously Variable Damping (CVD). While advanced, this system can become a source of costly and recurring issues as the vehicle ages, including air leaks, damper failure, and persistent "AIR SUSPENSION FAULT" warnings.

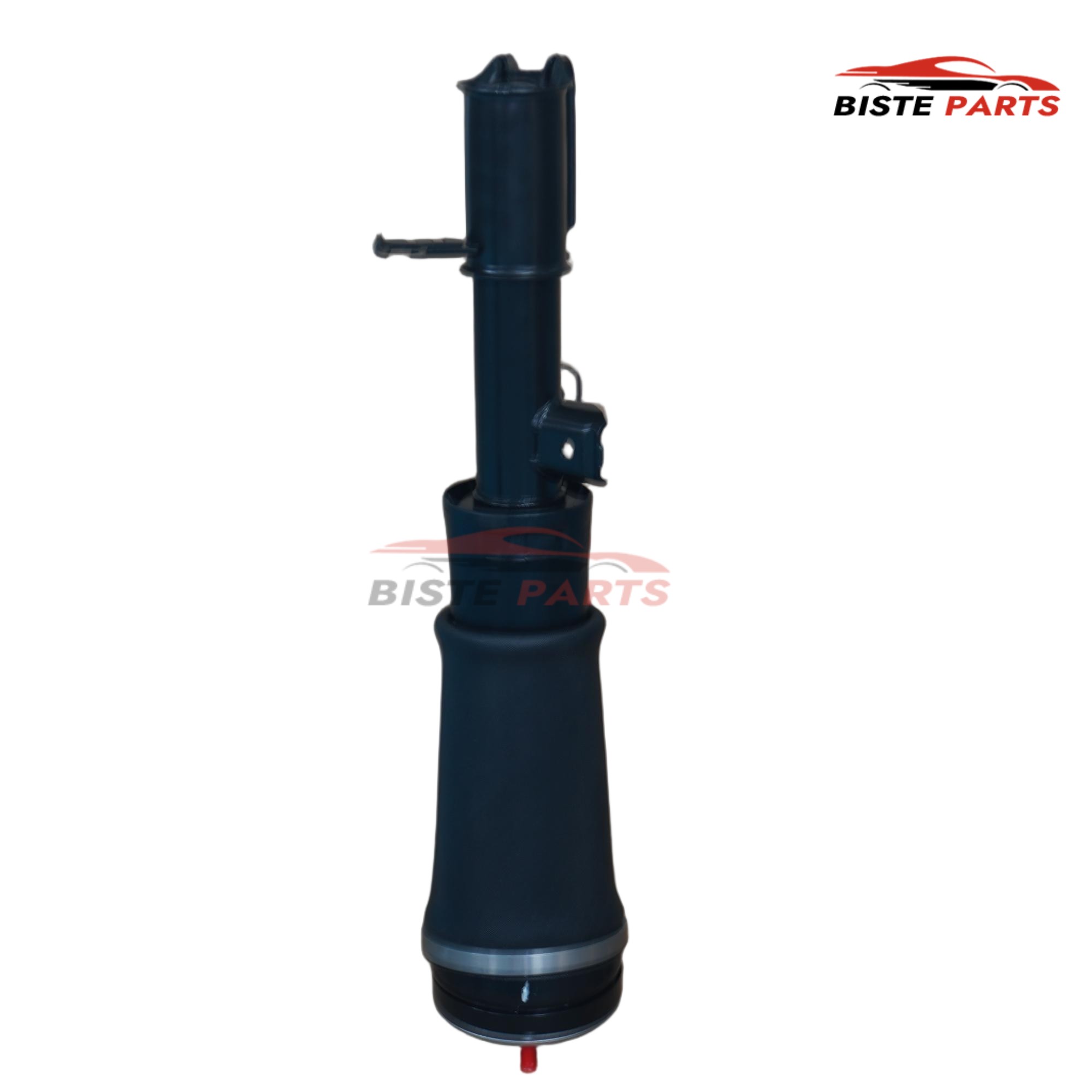

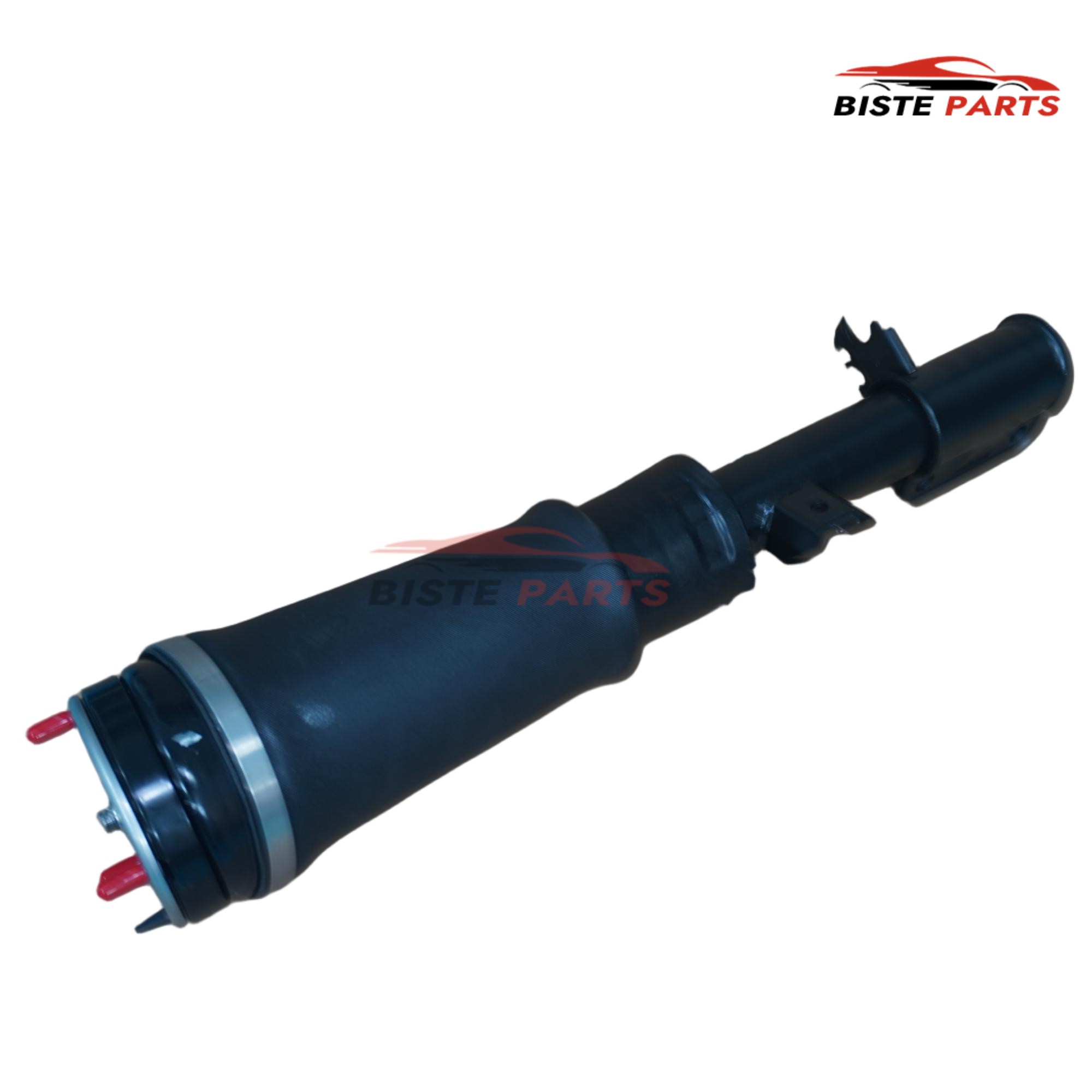

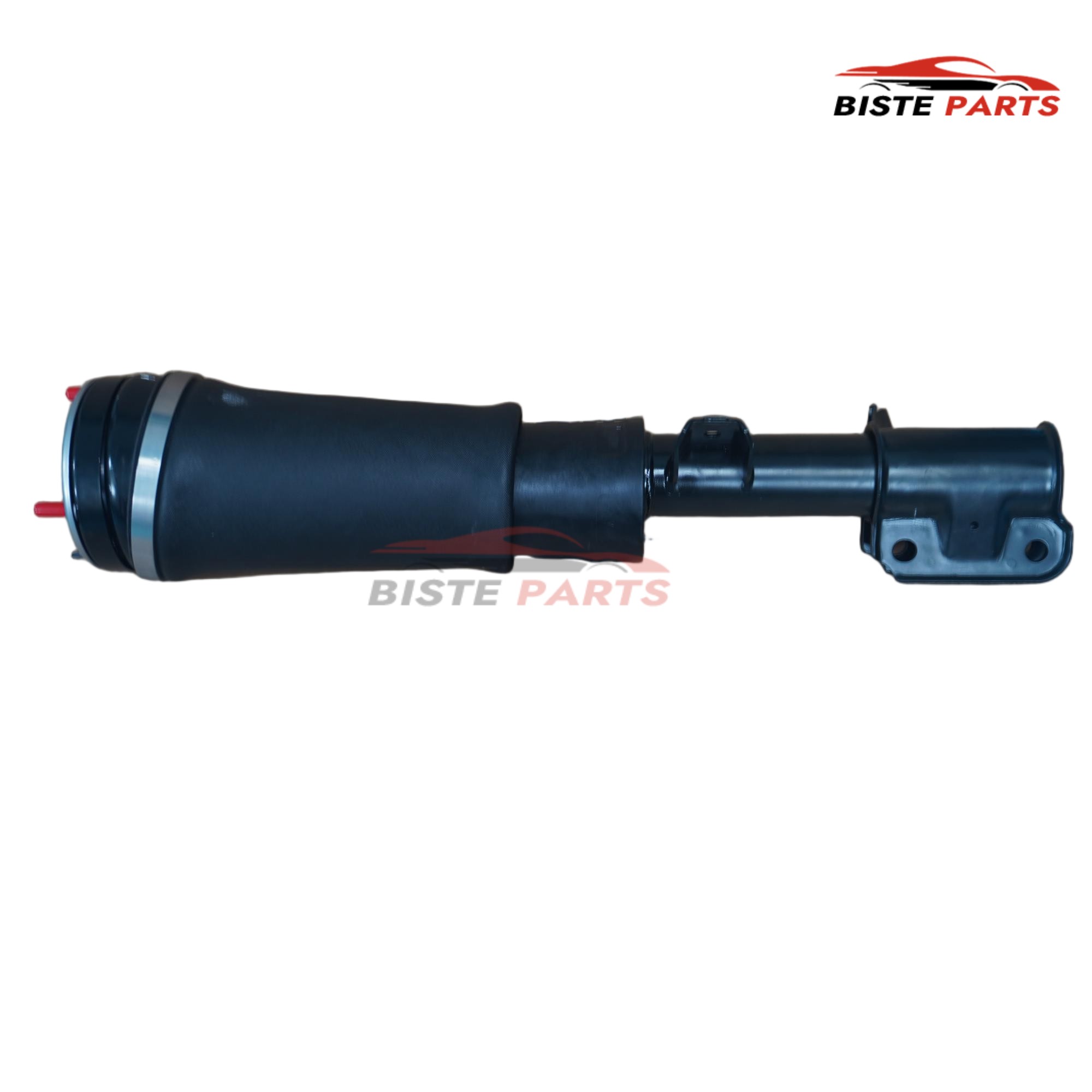

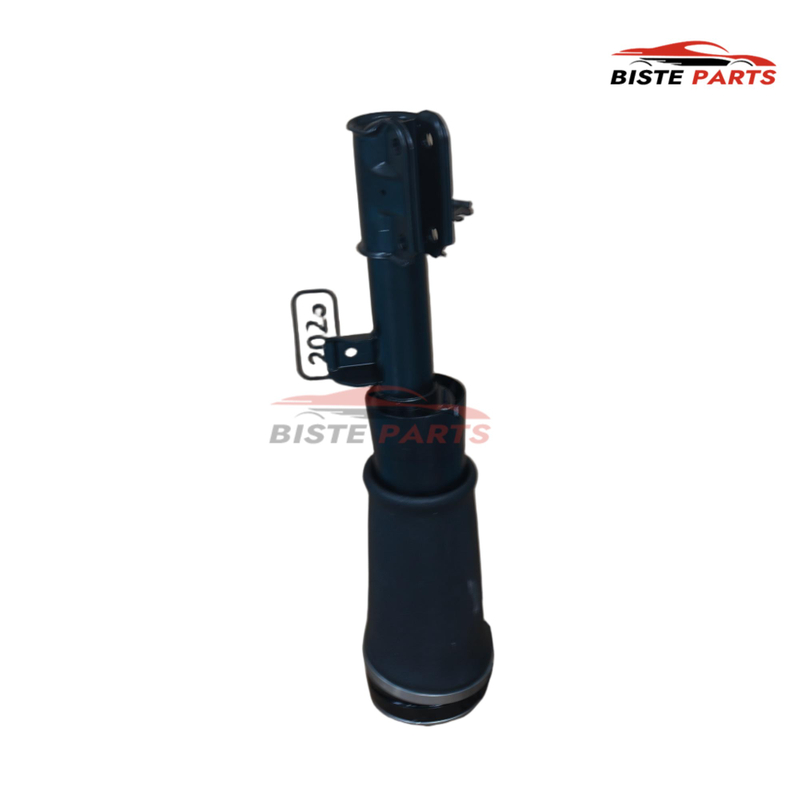

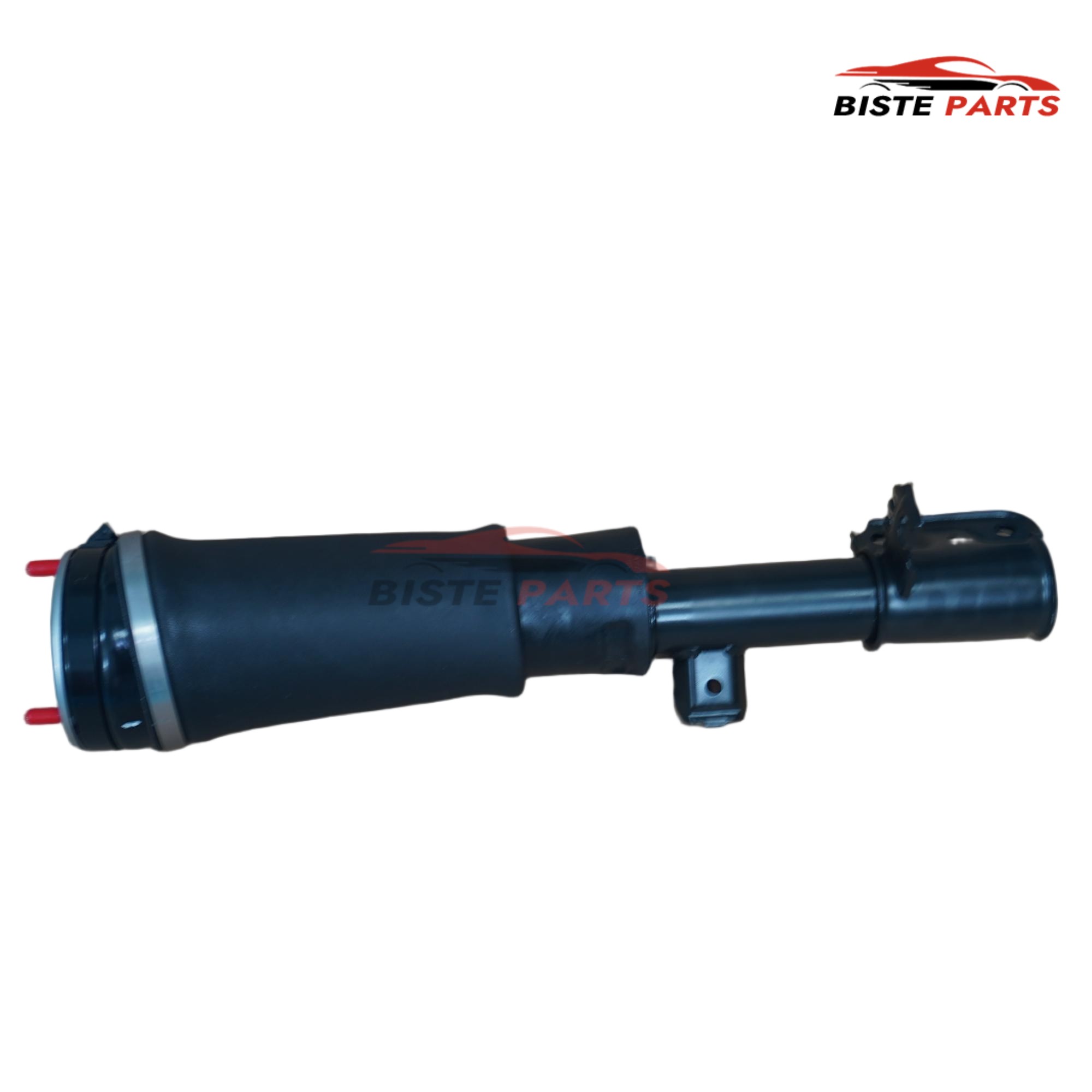

This Biste Front Right Air Strut offers a smart, reliable, and permanent solution. It is a passive conversion strut, meaning it replaces the complex electronic damper with a high-quality, conventionally-valved shock absorber, while retaining the essential air spring for ride height control. By installing this strut, you eliminate the electronic failure points of the VDS system, providing a dependable and comfortable ride without the risk of future electronic faults.
This is the ideal choice for owners seeking a long-term, worry-free repair that restores the Range Rover's commanding presence and smooth ride.
Key Features & Benefits:
Reliable Passive Conversion: Replaces the failure-prone electronic VDS strut with a durable, non-electronic design for long-lasting performance.
Cost-Effective Repair: A significantly more affordable alternative to a new OE electronic strut, saving you money without sacrificing quality.
Position-Specific Design: Engineered for the Front Right (FR) / Passenger's Side of the 2006-2012 Range Rover L322.
Direct-Fit Installation: Designed to bolt directly in place of the original strut with no modifications required.
Solves Common Faults: The definitive solution for a sagging front passenger's side, air leaks, and VDS-related "AIR SUSPENSION FAULT" messages.
TS16949 Certified Quality: Manufactured in a state-of-the-art facility adhering to the strict TS16949 automotive quality standard.
Product Specifications
| Attribute | Detail |
|---|
| Product Name | Front Right Air Suspension Strut (Non-VDS) |
| Position | Front Right (FR) / Passenger's Side |
| Vehicle | Land Rover Range Rover (L322) |
| Model Years | 2006-2012 |
| Condition | 100% Brand New |
| Package Dimensions | 84 x 20.3 x 20 cm (33.1 x 8 x 7.9 inches) |
| Package Weight | 14.5 kg (32 lbs) |
| Replaces OE Numbers | LR032563, LR051700, RNB500060, RNB501520, and others |
Vehicle Compatibility
This part is compatible with the Front Right side of the following vehicles:
CRITICAL FITMENT INFORMATION - PLEASE READ CAREFULLY:
This is a PASSIVE strut designed to replace the original electronic (VDS/CVD) strut. It does NOT have an electrical connection for damping control.
MUST BE REPLACED IN PAIRS: For a balanced and stable ride, these passive conversion struts must be installed in pairs (Front Right & Front Left). Mixing a passive strut with an original electronic strut will cause system faults and unsafe handling characteristics.
This part is for the 2006-2012 L322 models ONLY. It will NOT fit the earlier 2002-2005 models.
This part is for the Front Right (Passenger's Side) ONLY.
Please verify one of the part numbers from the list below matches the part you are replacing to guarantee fitment.
Replaces Part Numbers
This part is a direct replacement for the following original equipment (OE) part numbers:
Replaces Land Rover Original Equipment (OE) Part Numbers:
LR032563
LR051700
RNB000060
RNB000740
RNB500060
RNB500540
RNB501340
RNB501400
RNB501520
(Note: The provided list includes numbers that may supersede or cross-reference to both left and right sides in some catalogs. The numbers above are most commonly associated with the Front Right position.)
