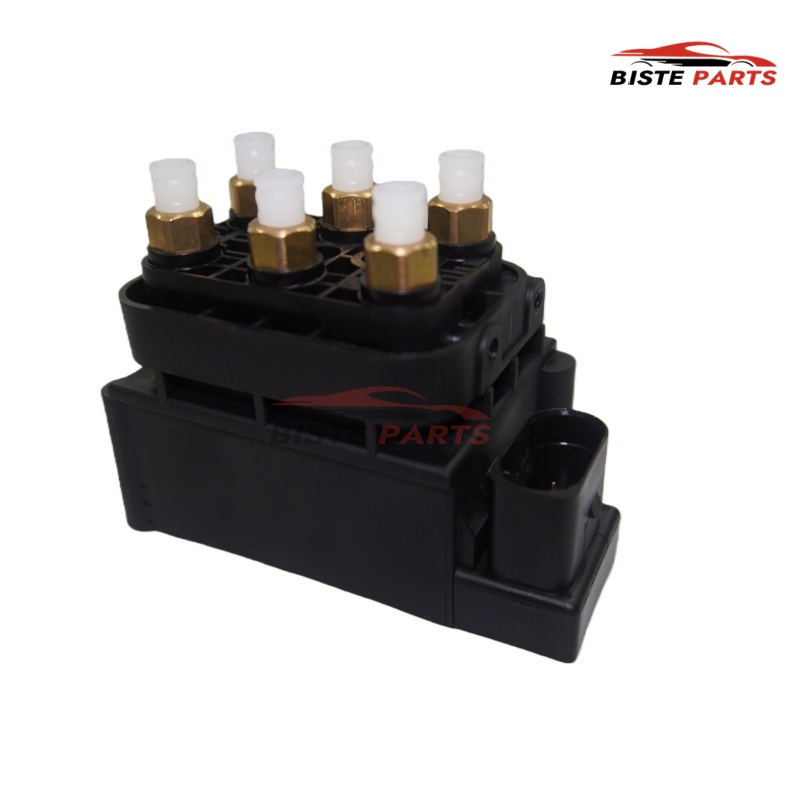

Common Mistakes in Air Suspension Valve Blocks Installation and How to Avoid Them

Installing a new air suspension valve block is often seen as a straightforward "plug-and-play" job. However, even experienced mechanics can run into trouble if they overlook the specific nuances of pneumatic systems.

A small error during installation can lead to a vehicle that refuses to rise, a compressor that burns out from overwork, or a brand-new part that leaks immediately. At Biste Parts, we want your repair to be successful on the first try.

Here is a breakdown of the three most common installation mistakes we see, and exactly how to avoid them.

1. Mistake #1: The "It Looks the Same" Trap (Compatibility)

The Error:Many valve blocks look nearly identical on the outside. A user might buy a valve block because it "looks like" the one on their BMW X5, only to find out later that the internal wiring or solenoid resistance is different.

The Solution:Never rely on visual matching alone.

• Verify the OE Number: Always cross-reference the Original Equipment number printed on your old unit with the specifications in our Air Suspension Valve Blocks Catalog.

• Check the Color Coding: Some valve blocks have color-coded ports (Blue, Red, Green, etc.). If your original block has colored dots and the new one doesn't (or they are in different orders), stop and verify compatibility.

2. Mistake #2: Poor Air Line Connections (The #1 Cause of Leaks)

The Error:The new valve block is installed, but the car drops overnight. This is almost always due to the air line connection, not the block itself.

• Reusing Old Fittings: Old brass fittings (VOSS fittings) crush onto the plastic line. Once used, they cannot be reused reliably.

• Bad Cuts: Cutting the plastic air line with scissors or wire cutters crushes the tube into an oval shape, preventing a perfect seal.

The Solution:

• Use New Fittings: Always use the new nuts and olives (compression rings) provided with your Air Suspension Valve Block.

• Cut it Straight: Use a dedicated razor blade cutter to ensure the air line tip is perfectly round and the cut is 90 degrees flat.

• Push Fully In: Ensure the line is inserted all the way into the valve block until it bottoms out before tightening the nut.

3. Mistake #3: Skipping the "Soap Test" (Verification)

The Error:Installing the part, putting the wheels back on, lowering the car, and driving away immediately. If there is a slow leak, you won't know until the next morning when the car is on the ground.

The Solution:Perform a leak test before you put the cover panels back on.

1. Start the car and let the suspension pressurize.

2. Spray a mixture of soap and water (or leak detection spray) on every air line connection on the valve block.

3. Look for bubbles. If you see bubbles, tighten the fitting slightly (do not overtighten!) until they stop.

4. Best Practices for a Flawless Install

To ensure longevity and performance, follow this checklist:

• Cleanliness is King: Dirt is the enemy of air suspension. Before removing the old block, blast the area with compressed air. A single grain of sand entering the open air lines can clog the sensitive solenoids inside the new valve block.

• Disconnect the Battery: Always disconnect the negative battery terminal. This prevents the suspension ECU from trying to open valves while you are working, which can be dangerous and trigger permanent fault codes.

• Do Not Overtighten: The valve block body is often made of plastic or aluminum. Overtightening the mounting bolts or air fittings can crack the housing. Hand-tight plus a quarter turn is usually sufficient (check specific torque specs).

5. Conclusion

Replacing an air suspension valve block is a rewarding repair that restores your vehicle's comfort and handling. However, it requires precision.

By verifying compatibility, ensuring clean and straight air line cuts, and testing for leaks, you can avoid the frustration of "do-overs." Start your repair with confidence by choosing a precision-engineered Air Suspension Valve Block from Biste Parts, designed for perfect fitment and durability.

FAQ: Frequently Asked Questions

Q1: Do I need to calibrate the suspension after changing the valve block?

A: Usually, no. The valve block is just an actuator. However, if the car sits unevenly after installation, you may need to perform a "Ride Height Calibration" using a diagnostic scanner to tell the ECU the new baseline.

Q2: How tight should the air line fittings be?

A: The general rule is roughly 2Nm to 4Nm. If you don't have a torque wrench that small, screw it in until you feel resistance, then turn it about 1/4 turn more. Do not force it.

Q3: My new valve block is leaking from the body, is it defective?

A: It is rare. 90% of "leaks" are actually air escaping from the threads because the air line wasn't pushed in deep enough. Remove the line, re-cut the tip, and re-install it carefully.

Q4: Can I use thread seal tape (Teflon tape) on the fittings?

A:Absolutely not. Teflon tape can shred, and small pieces can enter the valve block, jamming the solenoids permanently. The seal comes from the O-ring and compression ring, not the threads.
