The Mercedes-Benz Airmatic and ABC systems are engineering masterpieces, providing unparalleled comfort. However, when it comes time to service them, many owners feel intimidated by the complexity of air lines, compressors, and sensors.
The truth is, with the right tools, patience, and high-quality components, maintaining your air suspension is a manageable task. Whether you are a seasoned DIY mechanic or just want to understand the process before visiting a shop, knowledge is power.
At Biste Parts, we believe in empowering our customers. Here is your comprehensive guide to installing and maintaining Mercedes-Benz Air Suspension Parts.
Safety is paramount. Air suspension systems operate under high pressure (up to 16 bar). Never disconnect an air line without depressurizing the system first.
Jack and Jack Stands: Never work under a car supported only by a hydraulic jack.
Metric Socket Set: Mercedes uses standard metric sizes (10mm, 12mm, 13mm, etc.).
Flare Nut Wrench: Essential for loosening air line fittings without stripping them.
Diagnostic Scanner (OBDII): To clear codes and depressurize the struts (if applicable).
Before you lift the car, ensure you have the correct replacement. Check your VIN and Chassis Code (e.g., W211, W164).
Pro Tip: Always replace Air Struts in pairs to ensure the vehicle sits level.
Note: Procedures vary by model (S-Class vs. GL-Class). Always consult your specific service manual.
The compressor is the heart of the system, usually located behind the front bumper or near the rear axle.
Disconnect Battery: Prevent electrical shorts.
Remove Covers: Access the compressor by removing the underbody shield.
Disconnect Lines: Carefully unplug the electrical connector and the air intake/exhaust lines.
Swap the Relay: CRITICAL STEP. A fused relay is the #1 cause of new compressor failure. Always install the new relay included with your Biste Compressor.
Mount New Unit: Bolt it in, reconnect lines, and ensure the vibration isolators (rubber mounts) are fresh to reduce noise.
Depressurize: Use your scanner or carefully loosen the air line fitting at the valve block to release pressure.
Remove Wheel: Access the suspension components.
Disconnect Links: Unbolt the sway bar link and control arm mounts.
Remove Top Mount: Undo the nuts in the engine bay (for front struts).

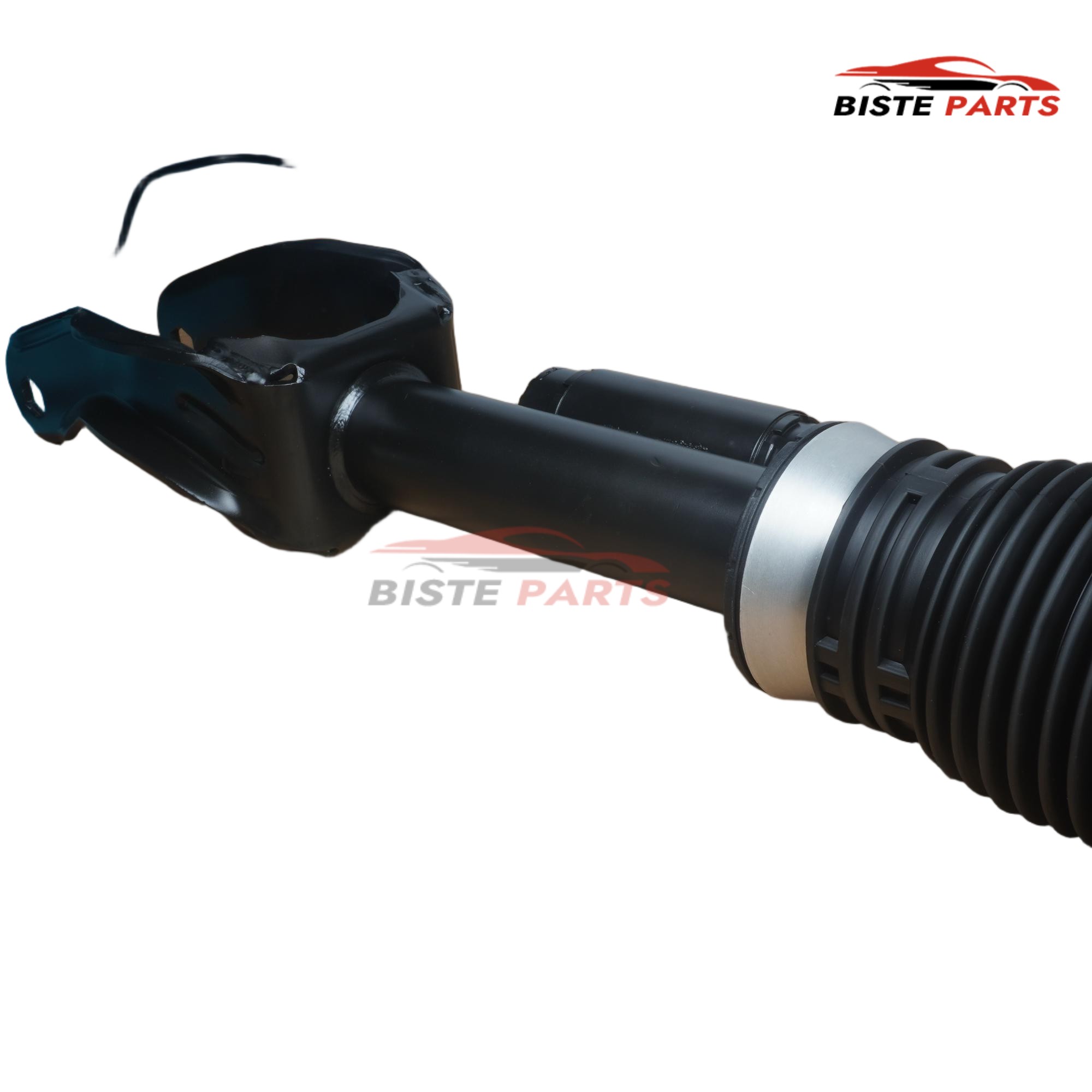

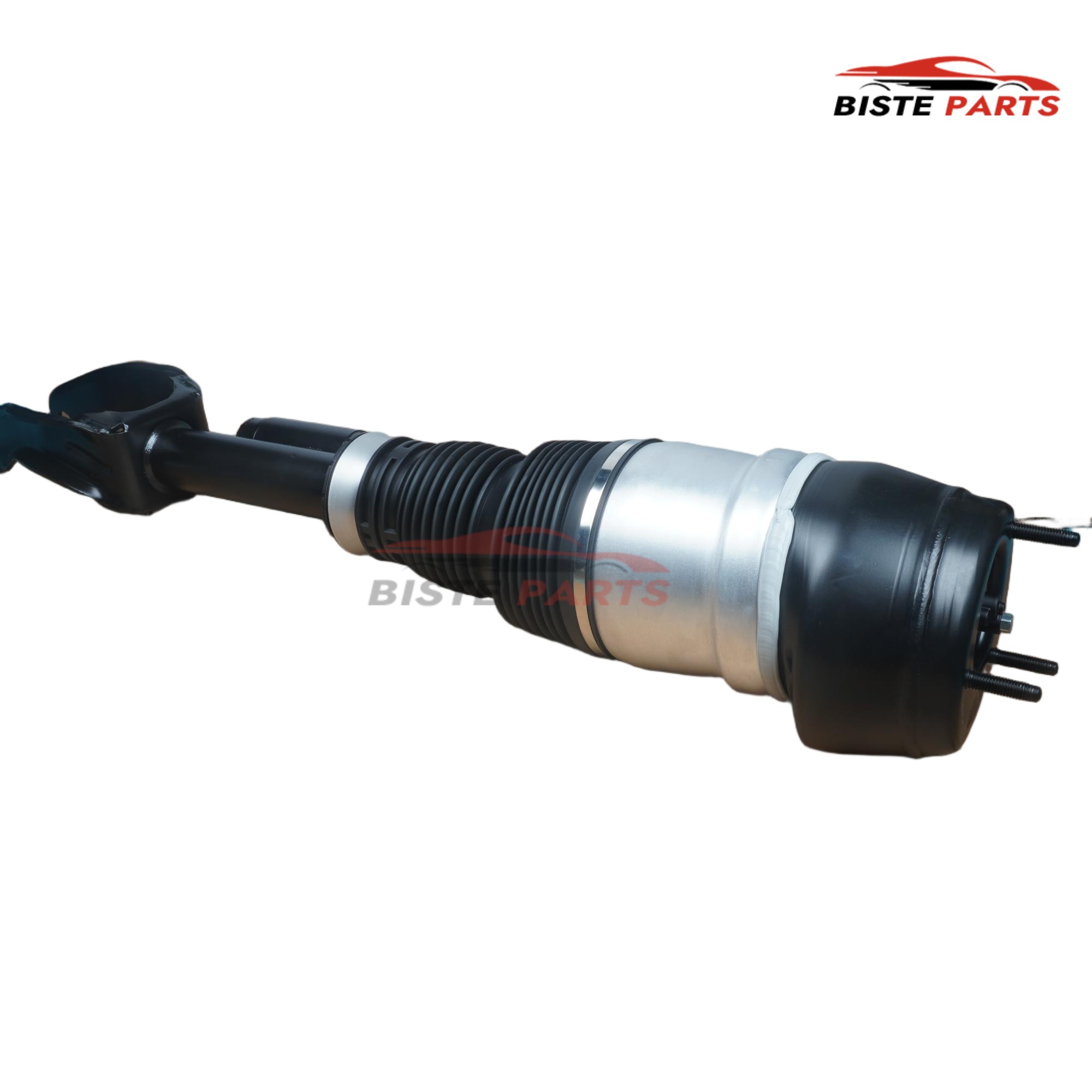

Install New Strut: Guide the new Biste Air Strut into place. Do not fully tighten the bottom bolt until the car is back on the ground (at ride height) to prevent bushing stress.
Label Lines: The air lines are color-coded. Mark them before removal to avoid cross-connection.
Swap Unit: Unbolt the old block and install the new Valve Block.
Leak Check: Before putting the covers back, spray the fittings with soapy water to ensure a tight seal.
Prevention is cheaper than repair.
Regular Inspections: Every oil change, visually inspect the rubber bellows of the air struts. Look for cracks, abrasions, or oil leaks (which indicate shock absorber failure).
Listen to Your Car: If the compressor runs for more than 20-30 seconds after startup, or runs frequently while stopped at lights, you likely have a leak. Fix it immediately to save the compressor.
Keep it Clean: Mud and road salt can dry out rubber seals. Rinse the wheel wells regularly.
Correct installation is the bridge between a quality part and a quality ride. A Mercedes-Benz Air Suspension system, when maintained properly with Biste Parts, will deliver hundreds of thousands of miles of cloud-like comfort.
Remember: Take your time, follow safety protocols, and never reuse old mounting hardware if new ones are provided.
Q1: Do I need to calibrate the suspension after installing new struts?
A: Usually, the system will self-level. However, if the ride height is uneven, a calibration using a Mercedes-specific scanner (like STAR/Xentry) may be required to "teach" the computer the new values.
Q2: Can I install the air compressor without replacing the relay?
A:Absolutely not. If the old relay is stuck in the "closed" position (which is common), it will run your brand-new compressor continuously until it burns out—often within minutes. This voids most warranties.
Q3: How tight should I make the air line fittings?
A: Be very careful. These are often brass fittings going into plastic or aluminum. Hand-tighten them, then give them a small turn (usually 1/4 turn) with a wrench. Over-tightening will crack the housing and cause leaks.
Q4: What should I do if the car doesn't rise after installation?
A: Ensure all doors are closed (the system won't activate if a door is open). Start the engine and let it run. If it still doesn't rise, check the fuse and ensure the air lines are fully seated in the valve block.
