Diagnosing and Troubleshooting Air Suspension Valve Blocks: Tips and Techniques

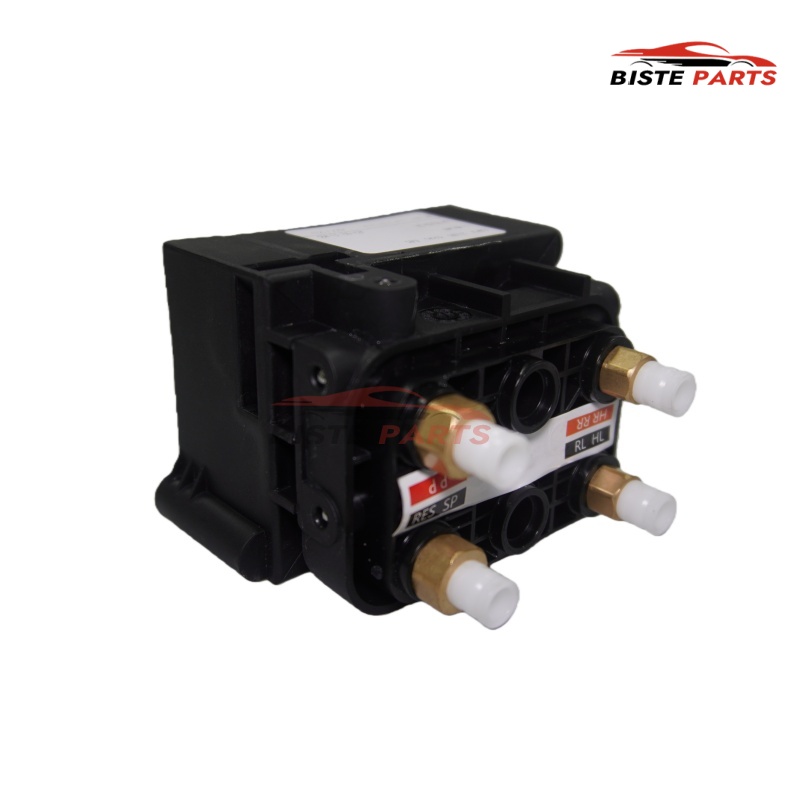

The air suspension valve block is the "traffic controller" of your vehicle’s pneumatic system. It directs air from the compressor to the air struts and releases it when you need to lower the car. When this component fails, the entire system becomes paralyzed.

However, a suspension fault doesn't always mean the valve block is broken. It could be a leak, a fuse, or a compressor issue. How do you know for sure?

At Biste Parts, we believe in empowering our customers with knowledge. This guide covers the symptoms of a bad valve block and the professional techniques to diagnose and fix the issue before it causes expensive damage to your compressor.

Common Faults and Their Symptoms

Before you grab your tools, listen to what your car is telling you. Valve block failures typically manifest in three specific ways:

1. Air Leaks (The "Sagging" Issue)

This is the most common mechanical failure. The internal O-rings dry out, or the plastic housing develops hairline cracks.

• Symptom: The vehicle "sags" or drops on one corner (or the entire front/rear axle) after being parked overnight.

• Symptom: You hear the air compressor running constantly as it tries to fight the leak.

2. Mechanical Sticking (The "Stuck" Issue)

Moisture in the system can cause the internal solenoid valves to corrode or freeze.

• Symptom: The vehicle refuses to lower from "Off-Road" height, or one corner remains stuck high while others lower.

• Symptom: The ride feels incredibly harsh because the air cannot move between chambers to dampen bumps.

3. Electrical Failure (The "Warning Light" Issue)

The solenoid coils that open the valves can burn out or short circuit.

• Symptom: A yellow or red suspension warning light appears on the dashboard immediately upon startup.

• Symptom: Diagnostic scanners read codes like "Open Circuit" or "Short to Ground" regarding the valve block.

Step-by-Step Diagnosis Guide

To confirm the valve block is the culprit, follow these testing procedures.

Step 1: The Soapy Water Test (For Leaks)

This is the gold standard for finding pneumatic leaks.

1. Start the engine and set the suspension to the highest setting (to maximize pressure).

2. Mix water and dish soap in a spray bottle.

3. Spray the solution generously over the Air Suspension Valve Block, specifically around the colored air line fittings.

4. Verdict: If you see bubbles forming and growing, you have a leak.

Step 2: The Multimeter Test (For Electricals)

If you have a dashboard error but no leaks, check the electronics.

1. Locate the electrical connector on the valve block and unplug it.

2. Set your multimeter to measure Resistance (Ohms).

3. Probe the pins corresponding to the solenoids (refer to your vehicle’s wiring diagram).

4. Verdict: If the reading is "OL" (Open Loop) or infinite resistance, the internal coil is broken. If the resistance is near zero, it is shorted. In both cases, the block must be replaced.

Step 3: The Air Line Check

Sometimes the block is fine, but the connection is bad.

• Inspect the air lines entering the block. Are they cut straight? Is the plastic tube crushed? A poor connection here mimics a broken valve block.

Troubleshooting and Solutions

Once you have identified the problem, here is how to resolve it.

Scenario A: Leaking from Fittings

• Fix: Do not try to use sealant or tape. Remove the air line, cut 1cm off the end using a sharp razor blade (to ensure a fresh, round section), and re-insert it with a new VOSS fitting.

• Note: If the leak is coming from the body of the block (a crack in the plastic), it cannot be patched. You must replace the unit.

Scenario B: Internal Valve Failure

• Fix: There are no user-serviceable parts inside the sealed unit. Cleaning it rarely works long-term.

• Recommendation: Replace the unit with a high-quality aftermarket Air Suspension Valve Block. Continuing to drive with a stuck valve puts massive strain on the air compressor, leading to a second (and more expensive) failure.

Scenario C: Corroded Connector

• Fix: Check the wiring harness plug. If the pins are green (corroded), clean them with electrical contact cleaner before condemning the valve block.

Conclusion

Diagnosing an air suspension issue is a process of elimination. Is it a leak? Is it electrical? Is it mechanical?

By performing these simple tests, you can pinpoint the failure accurately. If your diagnosis points to a faulty unit, don't settle for used parts. Choose a brand-new, precision-engineered Air Suspension Valve Block from Biste Parts to restore your vehicle’s comfort and safety immediately.

FAQ: Frequently Asked Questions

Q1: Can I drive my car with a bad valve block?

A: It is not recommended. If the valve block is leaking, your compressor will run non-stop to keep the car up, eventually burning out. If the valve is stuck, the uneven ride height can affect handling and braking safety.

Q2: How do I know if it's the compressor or the valve block?

A: If the compressor runs but the car doesn't rise, it could be a leak (valve block/strut) or a weak compressor. If the compressor doesn't run at all, check fuses and relays first. The "Soap Test" is the best way to rule out the valve block.

Q3: Do I need to depressurize the system before removing the valve block?

A:YES. This is critical for safety. Unscrewing a pressurized air line can cause it to whip around dangerously. Use a diagnostic tool to vent the system or carefully loosen fittings slowly to let air escape gradually.

Q4: Why does my valve block fail in winter?

A: Moisture in the system can freeze inside the valve block when temperatures drop, causing the valves to stick. This is why changing the air dryer filter on your compressor is also important maintenance.
