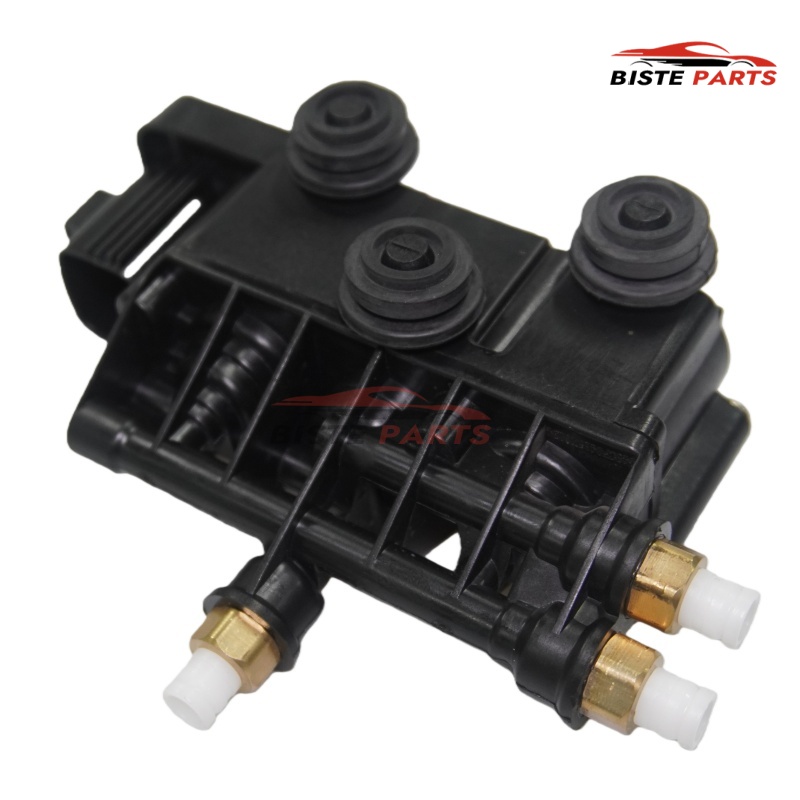

Essential Tools and Equipment for Installing Air Suspension Valve Blocks

You have diagnosed the problem, and you have purchased a high-quality replacement Air Suspension Valve Block from Biste Parts. Now comes the critical moment: installation.

Many "defective" valve blocks are actually just victims of improper installation. A crushed air line or an overtightened bolt can ruin a brand-new part in seconds. To ensure your repair lasts for years, having the right tools is just as important as having the right part.

Here is the definitive checklist of tools and equipment you need to perform a professional-grade installation.

1. The "Must-Have" Basic Tool List

You cannot perform the job without these. Most of these are likely already in your toolbox, but specific precision is required.

• The Proper Hose Cutter (Crucial):

  • Do NOT use: Side cutters, scissors, or pliers. These crush the plastic tube into an oval shape, guaranteeing a leak.

  • Do use: A dedicated Air Line Cutter or a sharp razor blade. The goal is a perfectly 90-degree, clean, round cut.

• Socket and Ratchet Set:

  • Valve blocks are usually secured with small bolts (commonly 8mm, 10mm, or T25 Torx). You will need a small ¼-inch drive ratchet to access tight spaces.

• Torque Wrench (Low Range):

  • Precision is key. Valve block fittings often require very low torque (e.g., 2Nm - 5Nm). A standard wheel lug torque wrench is too big. You need a precision torque wrench or a torque screwdriver to avoid cracking the plastic housing.

• Pick and Hook Set:

  • Useful for gently removing old electrical connectors or guiding air lines into place without using force.

2. Professional Equipment for a Flawless Job

If you want to work like a dealership technician, these tools elevate the quality of your repair.

• Diagnostic Scanner (OBDII with Service Functions):

  • Before removing the old block, the system is under high pressure (up to 15 bar). A scanner allows you to command the computer to "Depressurize System" safely.

  • After installation, it is used to perform a "Ride Height Calibration" or clear old fault codes.

• Leak Detection Spray:

  • While soapy water works, professional leak detection spray is more viscous and clings to the fittings, revealing even the tiniest "micro-leaks" that water might miss.

• Compressed Air (Shop Air):

  • Dirt is the enemy. Before you disconnect anything, use compressed air to blast away road grime from the old valve block area. This prevents debris from falling into the open air lines.

3. Preparing the Workspace and Safety Gear

Air suspension systems store massive amounts of potential energy. Safety is non-negotiable.

• Jack and Jack Stands:

  • Never rely on a hydraulic jack alone. When you disconnect the valve block, the car will drop. Ensure the vehicle is securely supported on jack stands rated for the vehicle's weight.

• Eye Protection:

  • When an air line is disconnected, residual pressure can blast dust and debris into your face. Always wear safety goggles.

• Cleanliness Protocol:

  • Treat the valve block installation like surgery. Lay down a clean shop towel. Ensure your hands (or gloves) are free of grease and grit. A single grain of sand inside a solenoid valve can cause a permanent failure.

4. Conclusion

Installing an Air Suspension Valve Block is a manageable task for a competent DIYer, provided you respect the process.

Using the right cutter ensures a seal. Using a torque wrench ensures structural integrity. And using a scanner ensures the system logic is reset. By gathering the proper tools before you start, you protect your investment and ensure your Biste Parts valve block delivers the smooth ride it was engineered for.

FAQ: Frequently Asked Questions

Q1: Can I use a regular knife to cut the air lines?

A: Only if it is a fresh, razor-sharp utility knife and you cut against a flat surface. Never cut "in the air" as this deforms the tube. A dedicated hose cutter is always the safest option.

Q2: Do I absolutely need a diagnostic scanner?

A: Ideally, yes. However, you can manually depressurize the system by very slowly loosening the air fittings (wearing eye protection!), letting air hiss out gradually. But you may still need a scanner later to clear error codes on the dashboard.

Q3: What happens if I overtighten the air fittings?

A: You will likely strip the threads or crack the valve block body. Once cracked, the block is ruined and must be replaced. Always hand-tighten first, then give it a small fraction of a turn with a wrench.

Q4: Do I need thread sealant (Loctite) on the bolts?

A: No. The sealing is done by O-rings and compression fittings. Adding chemical sealants can actually damage the plastic or clog the airways.
