The Audi adaptive air suspension system is complex, but maintaining it shouldn't be a mystery. Whether you are a professional mechanic or an experienced DIY enthusiast, the difference between a successful repair and a recurring nightmare often comes down to installation technique.
A high-quality part installed incorrectly will fail just as fast as a cheap part. At Biste Parts, we want to ensure you get the maximum lifespan out of our Wholesale Audi Air Suspension Parts.
Here is your essential guide to installing and maintaining these critical components.
Before you even lift the car, preparation is key. Audi systems are sensitive to voltage and pressure.
Diagnostic Tool (VCDS / VAG-COM): Essential for depressurizing the system before removal and calibrating ride height after installation.
Metric Socket Set: Specifically 10mm, 12mm, and 13mm for most compressor mounts.
Torque Wrench: To prevent snapping delicate bolts on the valve block.
Jack Stands: Never trust a hydraulic jack alone.
For models like the Audi A8 (D3/D4) or Q7 (4L), you must enable "Jack Mode" in the MMI (Multi-Media Interface) screen before lifting the vehicle. This disables the automatic leveling system so the car doesn't try to "correct" itself while in the air, which can damage the sensors.
Here are the specific protocols for the three main components found in our Audi Air Suspension Parts catalog.

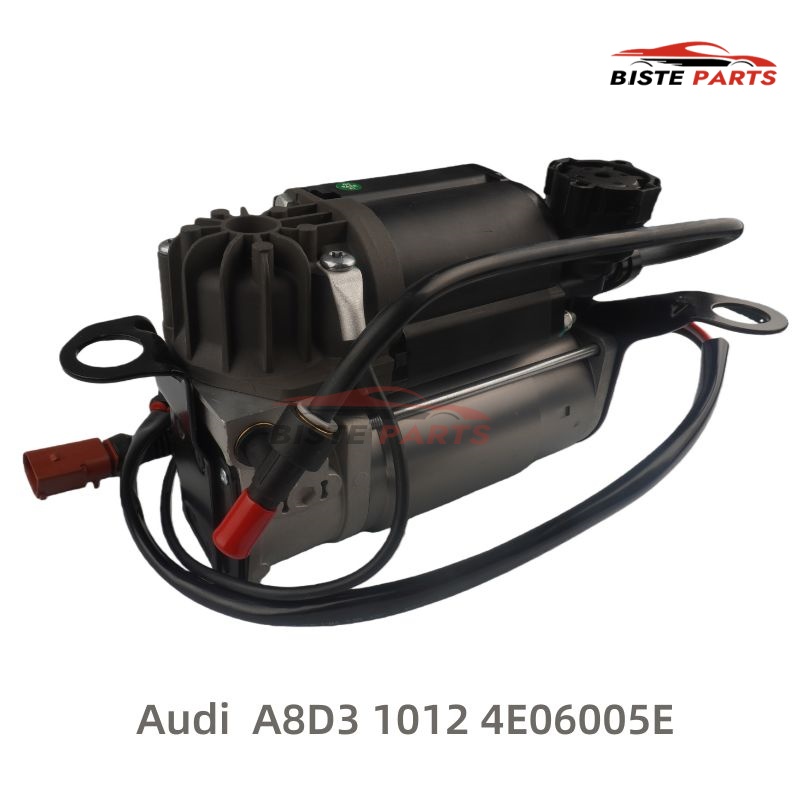

The compressor is the heart of the system.
Disconnect the Battery: Safety first.
Replace the Relay: This is non-negotiable. A fused relay is the #1 cause of compressor burnout. We recommend always installing a new relay with every new compressor.
Check Lines: Inspect the intake air hose for cracks. If the compressor sucks in dirt, it will fail in weeks.
Depressurize First: Use your scanner to release air pressure from the specific corner you are working on.
Protect the Air Line: When disconnecting the VOSS fitting, be careful not to scratch the plastic line. A scratch can cause a slow leak.
Final Tightening: Do not fully tighten the lower control arm bolts while the car is in the air. Lower the car to its normal ride height first, then torque the bolts. This prevents "pre-loading" the rubber bushings, which leads to premature tearing.
Label Everything: The valve block has multiple color-coded lines (Red, Blue, Black, etc.). Take a photo before disconnecting.
Gentle Hands: The threads on valve blocks are often plastic or soft metal. Hand-tighten the fittings first to ensure they aren't cross-threaded, then give a final quarter-turn with a wrench.
Prevention is cheaper than replacement. Here is how to maintain your Audi's air ride.
Clean the Air Springs: Lift the car and spray down the rubber bladders of the air struts with water. Remove any caked-on mud or gravel. Debris trapped in the fold of the rubber acts like sandpaper, eventually causing a puncture.
Listen for Leaks: If you hear the compressor running for more than 30 seconds after startup, you likely have a leak. Address it immediately.
In freezing climates, moisture inside the system can freeze the valve block. If you live in a cold region, consider adding a few drops of air brake antifreeze (specifically designed for air systems) if recommended by your specialist, or ensure your air dryer beads are fresh.
Proper installation is the final step in quality assurance. By following these protocols—using new relays, enabling Jack Mode, and keeping the system clean—you ensure that your new Audi Air Suspension Parts perform flawlessly for years.
Don't cut corners on installation, and don't cut corners on parts. Choose Biste Parts for engineering that matches the precision of your Audi.
Q1: Do I really need a computer (VCDS) to install air struts?
A: Technically, you can physically swap the parts without one. However, to properly depressurize the system safely and to perform the "Basic Settings" calibration (so the car sits level) after installation, a diagnostic tool is highly recommended.
Q2: Can I reuse the old air fittings (VOSS fittings)?
A: We advise against it. The compression ring inside the fitting deforms when tightened. Reusing it often leads to leaks. Most Biste Parts products come with new fittings included.
Q3: What happens if I don't replace the compressor relay?
A: If the old relay is stuck in the "Closed" position, your brand-new compressor will run continuously until it overheats and destroys itself. This is not covered by warranty.
Q4: How often should I inspect the air suspension?
A: We recommend a visual check every 10,000 miles or whenever you rotate your tires. Look for cracks in the rubber air bags.
